PF-4708671

Alias: PF-4708671; PF4708671; PF 4708671
Cat No.:V0239 Purity: ≥98%
PF-4708671 is a novel, potent, highly specific and cell-permeable inhibitor of p70 ribosomal S6 kinase (S6K1 isoform)/RSK1 with potential antitumor activity.
PF-4708671 Chemical Structure CAS No.: 1255517-76-0
Product category: S6 kinase
This product is for research use only, not for human use. We do not sell to patients.
Size Price Stock Qty
5mg
10mg
25mg
50mg
100mg
250mg
500mg
Other Sizes
Official Supplier of:
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text



  • Business Relationship with 5000+ Clients Globally
  • Major Universities, Research Institutions, Biotech & Pharma
  • Citations by Top Journals: Nature, Cell, Science, etc.
Top Publications Citing lnvivochem Products
Purity & Quality Control Documentation

Purity: =99.29%

Product Description

PF-4708671 is a novel, potent, highly specific and cell-permeable inhibitor of p70 ribosomal S6 kinase (S6K1 isoform)/RSK1 with potential antitumor activity. In cell-free assays, it inhibits RSK1 with a Ki/IC50 of 20 nM/160 nM, shows 400-fold greater selectivity for S6K1 over S6K2, and exhibits 4- and >20-fold selectivity for S6K1 over MSK1 and RSK1/2, respectively. As the first S6K1-specific inhibitor reported, PF-4708671 showed potent antiproliferative activity in vitro and high antitumor efficacy in vivo by preventing the S6K1-mediated phosphorylation of S6 protein in response to IGF-1 (insulin-like growth factor 1), while having no effect upon the PMA-induced phosphorylation of substrates of the highly related RSK (p90 ribosomal S6 kinase) and MSK (mitogen- and stress-activated kinase) kinases.

Biological Activity I Assay Protocols (From Reference)
Targets
S6K1 (IC50 = 160 nM); S6K1 (Ki = 20 nM); S6K2 (IC50 = 65 μM)
ln Vitro
PF-4708671 inhibits the activity of full-length S6K1 in vitro with a Ki of 20 nM, and S6K1 isolated from IGF1-stimulated HEK293 cells with an IC50 of 0.16 μM, and only very slightly (IC50 of 65 μM) inhibits the closely related S6K2 isoform. Over 20 times less potently than S6K1, PF-4708671 inhibits RSK1 (IC50 of 4.7 μM) and RSK2 (IC50 of 9.2 μM). PF4708671 inhibits MSK1 four times less potently than S6K1 (IC50 = 0.95 μM)[1]. HCT116 cells are treated with (i) vehicle (DMSO), (ii) OSI-906 (5 μM), (iii) PF-4708671 (10 μM), and (iv) OSI-906 (5 μM)+PF-4708671 (10 μM) for various amounts of time. OSI-906 alone (closed square) or PF4708671 alone (open circle) treatments on HCT116 cells marginally inhibit cell growth. The combination of OSI-906 and PF-4708671, on the other hand, significantly reduces HCT116 cell proliferation after a 2-day treatment (closed circle). When SW480 cells are treated with the mixture of OSI-906 and PF-4708671, the outcome is also similar. In comparison to vehicle, OSI-906 alone, or PF-4708671 alone treated HCT116 or SW480 cells, colony formation is also significantly decreased in OSI-906+PF-4708671-treated cells[2].
ln Vivo
The tumor growth rate in mice treated with the combination of OSI-906+PF-4708671 is significantly slower than that of OSI-906 alone (P=0.0189) or PF4708671 alone (P=0.0165) treated mice. At the conclusion of a 15-day treatment period, the average tumor volume in OSI-906+PF-4708671-treated mice is approximately 50% smaller than that in mice treated with OSI-906 (P=0.0056) or PF-4708671 alone (P<0.001)[2].
Enzyme Assay
PF-4708671 is a cell-permeable inhibitor of p70 ribosomal S6 kinase (S6K1 isoform) with Ki/IC50 of 20 nM/160 nM in cell-free assays, 400-fold greater selectivity for S6K1 than S6K2, and 4- and >20-fold selectivity for S6K1 than MSK1 and RSK1/2, respectively.
Cell Assay
These cells include GEO, HT29, SW480, and HCT116. XTT and clonogenic assays are used to determine how OSI-906 or OSI-906 and PF-4708671 affect cell proliferation. Cell Proliferation Kit II (XTT) is used to carry out XTT assays. For clonogenic assays, cells (1 103 cells/well) are seeded on a 6-well plate and then given drug treatments (OSI-906 5 M, PF-4708671 10 M). Cells are stained with 1% crystal violet after one week of incubation, and the number of colonies is counted and noted[2].
Animal Protocol
Mice: The following groups (five mice/group) of female athymic nude mice (Hsd:Athymic Nude-Foxn1nu) are randomly assigned. Mice are given either OSI-906 (30 mg/kg) or vehicle (25 mM tartaric acid) for 12 days prior to the injection of HT29-L and HT29-P cells. Mice are administered the following drugs orally for 14 days prior to the injection of HCT116 cells: vehicle (25 mM tartaric acid); OSI-906 alone (30 mg/kg); PF-4708671 alone (60 mg/kg); and OSI-906 (30 mg/kg)+PF-4708671 (60 mg/kg). Each day, one dose of OSI-906, one dose of PF-4708671, and one dose of Vehicle are administered. The mice are sacrificed, and the weights of the tumors were measured, twenty-four hours after the last treatment[2].
References

[1]. Characterization of PF-4708671, a novel and highly specific inhibitor of p70 ribosomal S6 kinase (S6K1). Biochem J. 2010 Oct 15;431(2):245-55.

[2]. Inhibition of p70S6K1 Activation by Pdcd4 Overcomes the Resistance to an IGF-1R/IR Inhibitor in Colon Carcinoma Cells. Mol Cancer Ther. 2015 Mar;14(3):799-809.

These protocols are for reference only. InvivoChem does not independently validate these methods.
Physicochemical Properties
Molecular Formula
C19H21N6F3
Molecular Weight
390.40544
Exact Mass
390.17798
Elemental Analysis
C, 58.45; H, 5.42; F, 14.60; N, 21.53
CAS #
1255517-76-0
Related CAS #
1255517-76-0
Appearance
solid powder
SMILES
FC(C1=CC=C2NC(CN3CCN(C4=NC=NC=C4CC)CC3)=NC2=C1)(F)F
InChi Key
FBLPQCAQRNSVHB-UHFFFAOYSA-N
InChi Code
InChI=1S/C19H21F3N6/c1-2-13-10-23-12-24-18(13)28-7-5-27(6-8-28)11-17-25-15-4-3-14(19(20,21)22)9-16(15)26-17/h3-4,9-10,12H,2,5-8,11H2,1H3,(H,25,26)
Chemical Name
2-((4-(5-ethylpyrimidin-4-yl)piperazin-1-yl)methyl)-5-(trifluoromethyl)-1H-benzo[d]imidazole
Synonyms
PF-4708671; PF4708671; PF 4708671
HS Tariff Code
2934.99.9001
Storage

Powder      -20°C    3 years

                     4°C     2 years

In solvent   -80°C    6 months

                  -20°C    1 month

Shipping Condition
Room temperature (This product is stable at ambient temperature for a few days during ordinary shipping and time spent in Customs)
Solubility Data
Solubility (In Vitro)
DMSO: ~30 mg/mL (76.8 mM)
Water: <1 mg/mL
Ethanol: 8 mg/mL (20.5 mM)
Solubility (In Vivo)
30% PEG400+0.5% Tween80+5% propylene glycol: 30mg/mL (Please use freshly prepared in vivo formulations for optimal results.)
Preparing Stock Solutions 1 mg 5 mg 10 mg
1 mM 2.5614 mL 12.8070 mL 25.6141 mL
5 mM 0.5123 mL 2.5614 mL 5.1228 mL
10 mM 0.2561 mL 1.2807 mL 2.5614 mL

*Note: Please select an appropriate solvent for the preparation of stock solution based on your experiment needs. For most products, DMSO can be used for preparing stock solutions (e.g. 5 mM, 10 mM, or 20 mM concentration); some products with high aqueous solubility may be dissolved in water directly. Solubility information is available at the above Solubility Data section. Once the stock solution is prepared, aliquot it to routine usage volumes and store at -20°C or -80°C. Avoid repeated freeze and thaw cycles.

Calculator

Molarity Calculator allows you to calculate the mass, volume, and/or concentration required for a solution, as detailed below:

  • Calculate the Mass of a compound required to prepare a solution of known volume and concentration
  • Calculate the Volume of solution required to dissolve a compound of known mass to a desired concentration
  • Calculate the Concentration of a solution resulting from a known mass of compound in a specific volume
An example of molarity calculation using the molarity calculator is shown below:
What is the mass of compound required to make a 10 mM stock solution in 5 ml of DMSO given that the molecular weight of the compound is 350.26 g/mol?
  • Enter 350.26 in the Molecular Weight (MW) box
  • Enter 10 in the Concentration box and choose the correct unit (mM)
  • Enter 5 in the Volume box and choose the correct unit (mL)
  • Click the “Calculate” button
  • The answer of 17.513 mg appears in the Mass box. In a similar way, you may calculate the volume and concentration.

Dilution Calculator allows you to calculate how to dilute a stock solution of known concentrations. For example, you may Enter C1, C2 & V2 to calculate V1, as detailed below:

What volume of a given 10 mM stock solution is required to make 25 ml of a 25 μM solution?
Using the equation C1V1 = C2V2, where C1=10 mM, C2=25 μM, V2=25 ml and V1 is the unknown:
  • Enter 10 into the Concentration (Start) box and choose the correct unit (mM)
  • Enter 25 into the Concentration (End) box and select the correct unit (mM)
  • Enter 25 into the Volume (End) box and choose the correct unit (mL)
  • Click the “Calculate” button
  • The answer of 62.5 μL (0.1 ml) appears in the Volume (Start) box
g/mol

Molecular Weight Calculator allows you to calculate the molar mass and elemental composition of a compound, as detailed below:

Note: Chemical formula is case sensitive: C12H18N3O4  c12h18n3o4
Instructions to calculate molar mass (molecular weight) of a chemical compound:
  • To calculate molar mass of a chemical compound, please enter the chemical/molecular formula and click the “Calculate’ button.
Definitions of molecular mass, molecular weight, molar mass and molar weight:
  • Molecular mass (or molecular weight) is the mass of one molecule of a substance and is expressed in the unified atomic mass units (u). (1 u is equal to 1/12 the mass of one atom of carbon-12)
  • Molar mass (molar weight) is the mass of one mole of a substance and is expressed in g/mol.
/

Reconstitution Calculator allows you to calculate the volume of solvent required to reconstitute your vial.

  • Enter the mass of the reagent and the desired reconstitution concentration as well as the correct units
  • Click the “Calculate” button
  • The answer appears in the Volume (to add to vial) box
In vivo Formulation Calculator (Clear solution)
Step 1: Enter information below (Recommended: An additional animal to make allowance for loss during the experiment)
Step 2: Enter in vivo formulation (This is only a calculator, not the exact formulation for a specific product. Please contact us first if there is no in vivo formulation in the solubility section.)
+
+
+

Calculation results

Working concentration mg/mL;

Method for preparing DMSO stock solution mg drug pre-dissolved in μL DMSO (stock solution concentration mg/mL). Please contact us first if the concentration exceeds the DMSO solubility of the batch of drug.

Method for preparing in vivo formulation:Take μL DMSO stock solution, next add μL PEG300, mix and clarify, next addμL Tween 80, mix and clarify, next add μL ddH2O,mix and clarify.

(1) Please be sure that the solution is clear before the addition of next solvent. Dissolution methods like vortex, ultrasound or warming and heat may be used to aid dissolving.
             (2) Be sure to add the solvent(s) in order.

Biological Data
  • PF-4708671

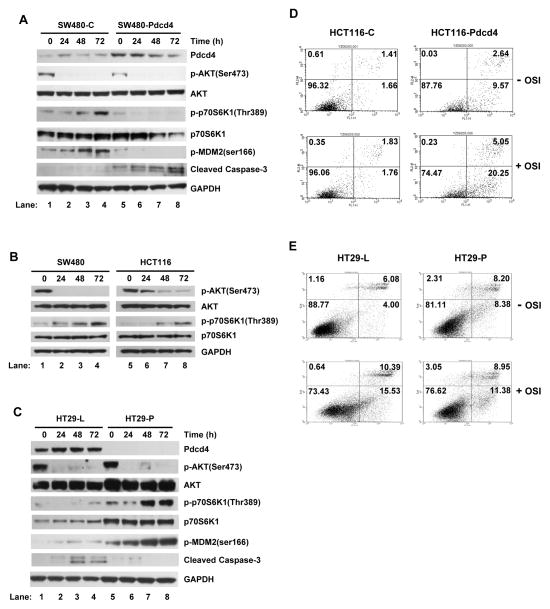

    Pdcd4 enhances cell sensitivity to OSI-906 via suppression of p70S6K1 phosphorylation.2015 Mar;14(3):799-809.

  • PF-4708671

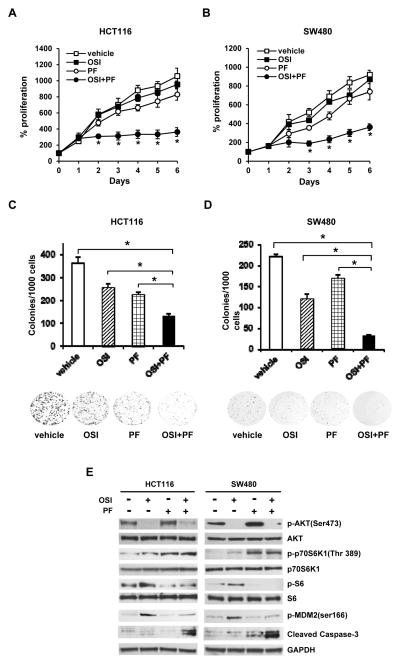

    The combination of OSI-906 and PF-4708671 significantly inhibits the growth of resistant CRC cells.2015 Mar;14(3):799-809.

  • PF-4708671

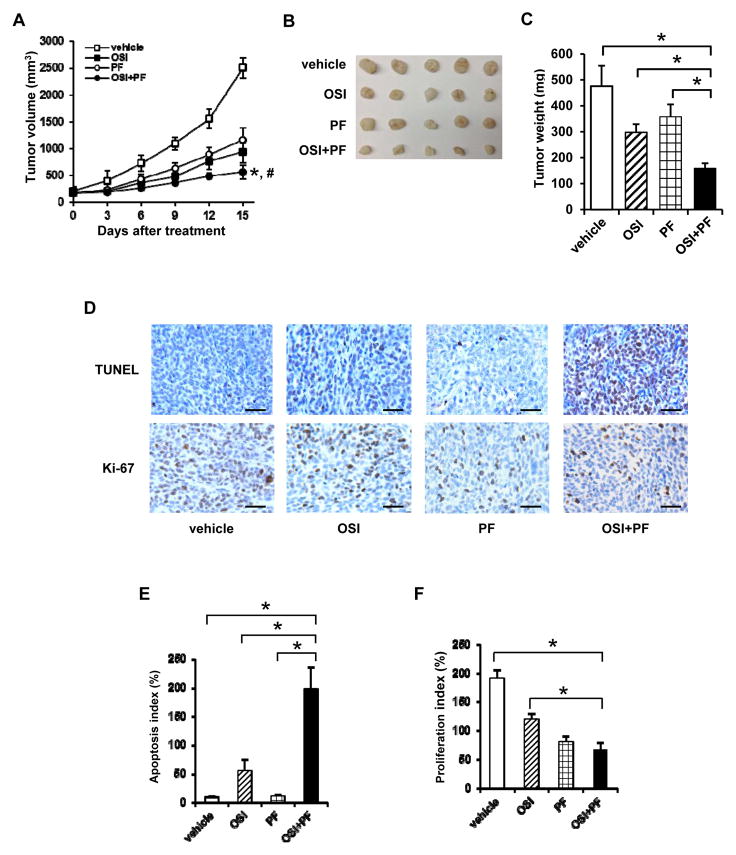

    The combination of OSI-906 and PF-4708671 significantly inhibits the growth of HCT116-derived tumor in nude mice.2015 Mar;14(3):799-809.

  • PF-4708671

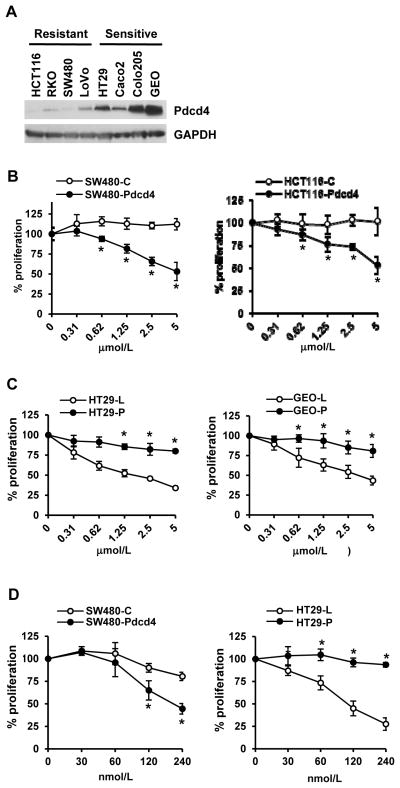

    Expression level of Pdcd4 correlates with cell sensitivity to OSI-906.2015 Mar;14(3):799-809.

  • PF-4708671

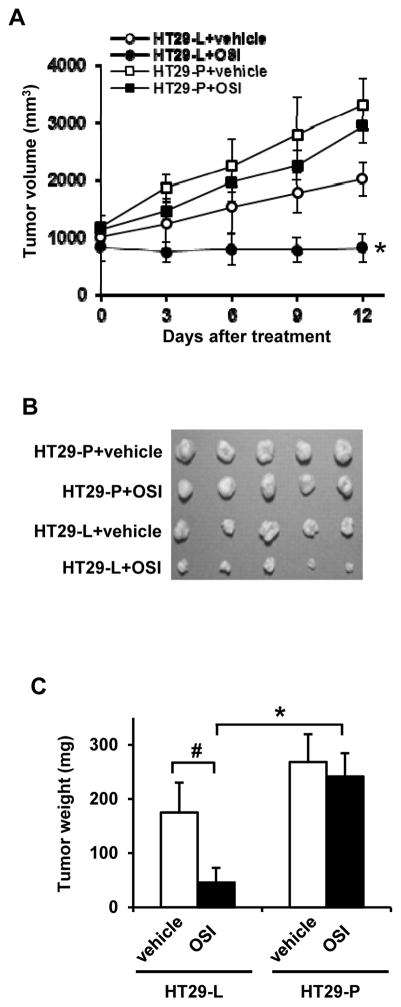

    Tumors derived from Pdcd4 knockdown cells resist to OSI-906 treatment.2015 Mar;14(3):799-809.

  • PF-4708671

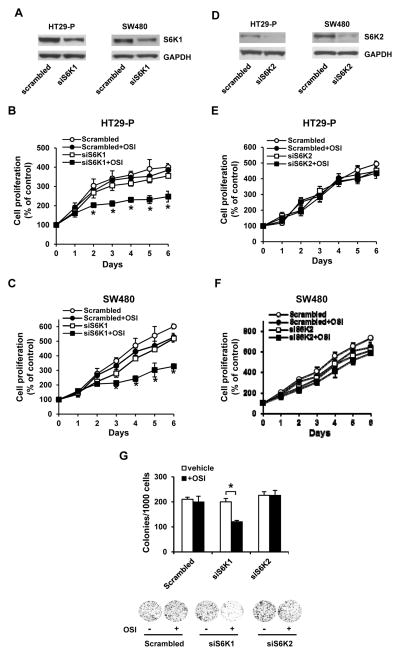

    Knockdown of p70S6K1 but not p70S6K2 enhances cell sensitivity to OSI-906.2015 Mar;14(3):799-809.
