PD173955

Alias: PD 173955;PD173955; PD-173955
Cat No.:V0676 Purity: ≥98%
PD173955 (PD-173955), asrc-selective tyrosine kinase inhibitor, is a novel and potent Bcr-Abl inhibitor with potential anticancer activity.
PD173955
PD173955 Chemical Structure CAS No.: 260415-63-2
Product category: Bcr-Abl
This product is for research use only, not for human use. We do not sell to patients.
Size Price Stock Qty
1mg
5mg
10mg
25mg
50mg
100mg
250mg
500mg
Other Sizes
Official Supplier of:
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text



  • Business Relationship with 5000+ Clients Globally
  • Major Universities, Research Institutions, Biotech & Pharma
  • Citations by Top Journals: Nature, Cell, Science, etc.
Top Publications Citing lnvivochem Products
Purity & Quality Control Documentation

Purity: ≥98%

Product Description

PD173955 (PD-173955), a src-selective tyrosine kinase inhibitor, is a novel and potent Bcr-Abl inhibitor with potential anticancer activity. It inhibits Bcr-Abl with an IC50 of 1-2 nM, it also inhibits Src activity with IC50 of 22 nM.

Biological Activity I Assay Protocols (From Reference)
ln Vitro

In vitro activity: PD173955 potently inhibits Bcr-Abl-dependent cell growth with IC50 of 2-35 nM in Bcr-Abl-positive cell lines, about 100- to 200-fold more sensitive than in Bcr-Abl-negative cell lines. PD173955 also inhibits kit ligand-dependent proliferation of M07e cells with IC50 of 40 nM, by inhibition of kit ligand-dependent c-kit autophosphorylation. In addition, PD173955, as a Src inhibitor, potently inhibits mitotic progression during early mitosis in cells of all types and induces varying degrees of apoptotic cell death.


Kinase Assay: Bcr-Abl complexed to SHIP2 is immunoprecipitated from cell lysates of K562 cells maintained in log-phase culture conditions. Complexes are collected on protein A-Sepharose, and complexes are washed three times in lysis buffer and then washed twice in abl kinase buffer [50 mM Tris (pH 8.0), 10 mM MgCl2, 1 mM DTT, 2 mM p-nitrophenylphosphate, and 2 μM ATP; New England Biolabs Buffer and protocol]. Kinase assays are performed with 10 μM [γ-32P]ATP/sample for 15–60 min at 30°C in the presence or absence of the indicated concentrations of drug. The reaction is stopped by the addition of SDS-PAGE sample buffer and heated at 100°C for 10 min. Proteins are separated on 7.5% SDS-polyacrylamide gels, gels are dried under vacuum, and phosphorylation is visualized by autoradiography on X-ray film.


Cell Assay: Cell growth is determined by two methods. For the [3H]thymidine assay, cells (104 cells/well, Bcr-Abl-positive cell lines (R10(+), R10(−), K562, and RWLeu4); Bcr-Abl-negative cell lines (HL-60, SK-N-ER, SK-N-MC, U138MG, and HS-16)) are cultured in 96-well, round-bottomed plates with diluted DMSO (control) or with varying concentrations of a specific compound that is resuspended in DMSO for 48 h at 37°C. [3H]Thymidine is added at a concentration of 1 μCi/well, and cells are incubated for an additional 18 h. Cells were harvested with the Unifilter system, scintillation fluid (25 μl/well) is added to each well, and [3H]thymidine incorporation is determined on a Packard Scintillation Counter. Data points for all assays are obtained in triplicate, and background incorporation from cell-free wells is determined and subtracted from all data points. For cell viability, control and drug-treated harvested cells are counted on a hemocytometer using the trypan blue dye exclusion method.

ln Vivo

Animal Protocol


References

[1]. Inhibition of Src kinases by a selective tyrosine kinase inhibitor causes mitotic arrest. Cancer Res. 1999 Dec 15;59(24):6145-52. PMID: 10626805.

[2]. Dual tyrosine kinase inhibitors in chronic myeloid leukemia. Leukemia. 2005 Nov;19(11):1872-9.

[3]. Gleevec shifts APP processing from a β-cleavage to a nonamyloidogenic cleavage. Proc Natl Acad Sci U S A. 2017 Feb 7;114(6):1389-1394.

[4]. PD166326, a novel tyrosine kinase inhibitor, has greater antileukemic activity than imatinib mesylate in a murine model of chronic myeloid leukemia. Blood. 2005 May 15;105(10):3995-4003.

Additional Infomation
PD173955 is a dichlorobenzene, a methyl sulfide, a pyridopyrimidine and an aryl sulfide. It has a role as a tyrosine kinase inhibitor.
These protocols are for reference only. InvivoChem does not independently validate these methods.
Physicochemical Properties
Molecular Formula
C21H16CL2N4OS
Molecular Weight
443.35
Exact Mass
442.042
Elemental Analysis
C, 56.89; H, 3.64; Cl, 15.99; N, 12.64; O, 3.61; S, 7.23
CAS #
260415-63-2
Related CAS #
260415-63-2
PubChem CID
447077
Appearance
white solid powder
Density
1.5±0.1 g/cm3
Boiling Point
626.7±65.0 °C at 760 mmHg
Flash Point
332.8±34.3 °C
Vapour Pressure
0.0±1.8 mmHg at 25°C
Index of Refraction
1.725
LogP
4.74
Hydrogen Bond Donor Count
1
Hydrogen Bond Acceptor Count
5
Rotatable Bond Count
4
Heavy Atom Count
29
Complexity
626
Defined Atom Stereocenter Count
0
SMILES
O=C1C(C2=C(Cl)C=CC=C2Cl)=CC3=CN=C(NC4=CC=CC(SC)=C4)N=C3N1C
InChi Key
VAARYSWULJUGST-UHFFFAOYSA-N
InChi Code
InChI=1S/C21H16Cl2N4OS/c1-27-19-12(9-15(20(27)28)18-16(22)7-4-8-17(18)23)11-24-21(26-19)25-13-5-3-6-14(10-13)29-2/h3-11H,1-2H3,(H,24,25,26)
Chemical Name
6-(2,6-dichlorophenyl)-8-methyl-2-((3-(methylthio)phenyl)amino)pyrido[2,3-d]pyrimidin-7(8H)-one
Synonyms
PD 173955;PD173955; PD-173955
HS Tariff Code
2934.99.9001
Storage

Powder      -20°C    3 years

                     4°C     2 years

In solvent   -80°C    6 months

                  -20°C    1 month

Shipping Condition
Room temperature (This product is stable at ambient temperature for a few days during ordinary shipping and time spent in Customs)
Solubility Data
Solubility (In Vitro)
DMSO: 15 mg/mL (33.8 mM)
Water:<1 mg/mL
Ethanol:<1 mg/mL
Solubility (In Vivo)
Solubility in Formulation 1: ≥ 2.5 mg/mL (5.64 mM) (saturation unknown) in 10% DMSO + 40% PEG300 + 5% Tween80 + 45% Saline (add these co-solvents sequentially from left to right, and one by one), clear solution.
For example, if 1 mL of working solution is to be prepared, you can add 100 μL of 25.0 mg/mL clear DMSO stock solution to 400 μL PEG300 and mix evenly; then add 50 μL Tween-80 to the above solution and mix evenly; then add 450 μL normal saline to adjust the volume to 1 mL.
Preparation of saline: Dissolve 0.9 g of sodium chloride in 100 mL ddH₂ O to obtain a clear solution.

Solubility in Formulation 2: ≥ 1 mg/mL (2.26 mM) (saturation unknown) in 10% DMSO + 90% Corn Oil (add these co-solvents sequentially from left to right, and one by one), clear solution.
For example, if 1 mL of working solution is to be prepared, you can add 100 μL of 10.0 mg/mL clear DMSO stock solution to 900 μL of corn oil and mix evenly.

 (Please use freshly prepared in vivo formulations for optimal results.)
Preparing Stock Solutions 1 mg 5 mg 10 mg
1 mM 2.2556 mL 11.2778 mL 22.5555 mL
5 mM 0.4511 mL 2.2556 mL 4.5111 mL
10 mM 0.2256 mL 1.1278 mL 2.2556 mL

*Note: Please select an appropriate solvent for the preparation of stock solution based on your experiment needs. For most products, DMSO can be used for preparing stock solutions (e.g. 5 mM, 10 mM, or 20 mM concentration); some products with high aqueous solubility may be dissolved in water directly. Solubility information is available at the above Solubility Data section. Once the stock solution is prepared, aliquot it to routine usage volumes and store at -20°C or -80°C. Avoid repeated freeze and thaw cycles.

Calculator

Molarity Calculator allows you to calculate the mass, volume, and/or concentration required for a solution, as detailed below:

  • Calculate the Mass of a compound required to prepare a solution of known volume and concentration
  • Calculate the Volume of solution required to dissolve a compound of known mass to a desired concentration
  • Calculate the Concentration of a solution resulting from a known mass of compound in a specific volume
An example of molarity calculation using the molarity calculator is shown below:
What is the mass of compound required to make a 10 mM stock solution in 5 ml of DMSO given that the molecular weight of the compound is 350.26 g/mol?
  • Enter 350.26 in the Molecular Weight (MW) box
  • Enter 10 in the Concentration box and choose the correct unit (mM)
  • Enter 5 in the Volume box and choose the correct unit (mL)
  • Click the “Calculate” button
  • The answer of 17.513 mg appears in the Mass box. In a similar way, you may calculate the volume and concentration.

Dilution Calculator allows you to calculate how to dilute a stock solution of known concentrations. For example, you may Enter C1, C2 & V2 to calculate V1, as detailed below:

What volume of a given 10 mM stock solution is required to make 25 ml of a 25 μM solution?
Using the equation C1V1 = C2V2, where C1=10 mM, C2=25 μM, V2=25 ml and V1 is the unknown:
  • Enter 10 into the Concentration (Start) box and choose the correct unit (mM)
  • Enter 25 into the Concentration (End) box and select the correct unit (mM)
  • Enter 25 into the Volume (End) box and choose the correct unit (mL)
  • Click the “Calculate” button
  • The answer of 62.5 μL (0.1 ml) appears in the Volume (Start) box
g/mol

Molecular Weight Calculator allows you to calculate the molar mass and elemental composition of a compound, as detailed below:

Note: Chemical formula is case sensitive: C12H18N3O4  c12h18n3o4
Instructions to calculate molar mass (molecular weight) of a chemical compound:
  • To calculate molar mass of a chemical compound, please enter the chemical/molecular formula and click the “Calculate’ button.
Definitions of molecular mass, molecular weight, molar mass and molar weight:
  • Molecular mass (or molecular weight) is the mass of one molecule of a substance and is expressed in the unified atomic mass units (u). (1 u is equal to 1/12 the mass of one atom of carbon-12)
  • Molar mass (molar weight) is the mass of one mole of a substance and is expressed in g/mol.
/

Reconstitution Calculator allows you to calculate the volume of solvent required to reconstitute your vial.

  • Enter the mass of the reagent and the desired reconstitution concentration as well as the correct units
  • Click the “Calculate” button
  • The answer appears in the Volume (to add to vial) box
In vivo Formulation Calculator (Clear solution)
Step 1: Enter information below (Recommended: An additional animal to make allowance for loss during the experiment)
Step 2: Enter in vivo formulation (This is only a calculator, not the exact formulation for a specific product. Please contact us first if there is no in vivo formulation in the solubility section.)
+
+
+

Calculation results

Working concentration mg/mL;

Method for preparing DMSO stock solution mg drug pre-dissolved in μL DMSO (stock solution concentration mg/mL). Please contact us first if the concentration exceeds the DMSO solubility of the batch of drug.

Method for preparing in vivo formulation:Take μL DMSO stock solution, next add μL PEG300, mix and clarify, next addμL Tween 80, mix and clarify, next add μL ddH2O,mix and clarify.

(1) Please be sure that the solution is clear before the addition of next solvent. Dissolution methods like vortex, ultrasound or warming and heat may be used to aid dissolving.
             (2) Be sure to add the solvent(s) in order.

Biological Data
  • PD173955

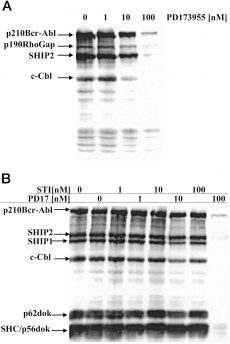

    PD173955 inhibits Bcr-Abl-dependent substrate tyrosine phosphorylation in vivo.Cancer Res.2002 Aug 1;62(15):4244-55.

  • PD173955

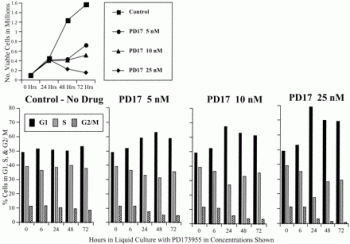

    PD173955 induces strong accumulation in G1 phase of the cell cycle. Cancer Res. 2002 Aug 1;62(15):4244-55.

  • PD173955

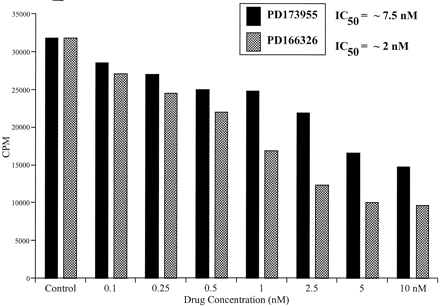

    PD173955 and PD166326 selectively inhibit the growth of primary CD34+ CML primitive progenitor cells from a patient with chronic phase CML.Cancer Res.2002 Aug 1;62(15):4244-55.
