StemRegenin 1 (SR1)

Alias: SetmEegenin 1; StemRegenin 1; 1227633-49-9; SetmEegenin 1; StemRegenin 1 (SR1); StemRegenin1; 4-(2-(2-(benzo[b]thiophen-3-yl)-9-isopropyl-9H-purin-6-ylamino)ethyl)phenol; Stemregenin 1 (GMP); MFCD16987861; SR1
Cat No.:V0951 Purity: =98.22%
StemRegenin 1(abbreviated as SR1; SR-1),a purine derivative, is a potent antagonist of the aryl hydrocarbon receptor(AhR)with important biological activity.
StemRegenin 1 (SR1)
StemRegenin 1 (SR1) Chemical Structure CAS No.: 1227633-49-9
Product category: AhR
This product is for research use only, not for human use. We do not sell to patients.
Size Price Stock Qty
10mg
25mg
50mg
100mg
250mg
500mg
1g
Other Sizes
Official Supplier of:
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text



  • Business Relationship with 5000+ Clients Globally
  • Major Universities, Research Institutions, Biotech & Pharma
  • Citations by Top Journals: Nature, Cell, Science, etc.
Top Publications Citing lnvivochem Products
Purity & Quality Control Documentation

Purity: =98.22%

Product Description

StemRegenin 1(abbreviated as SR1; SR-1), a purine derivative, is a potent antagonist of the aryl hydrocarbon receptor (AhR) with important biological activity. It inhibits AhR with IC50 of 127 nM in CD34+ cells. SR1 has been found to promote the ex vivo expansion of CD34+ cells. SR1 has also been found to induce the ex vivo differentiation of pDCs, BDCA1+ and BDCA3+ mDCs as well as the generation of high numbers of all these DC subsets.

Biological Activity I Assay Protocols (From Reference)
Targets
Aryl hydrocarbon receptor/AhR (IC50 = 127 nM)
ln Vitro
The aryl hydrocarbon receptor is antagonistically acted upon by StemRegenin 1 (SR1). (AhR). With an EC50 of less than 120 nM, stemregenin 1 boosts the number of CD34+ cells after 5 to 7 days. Based on these findings, it can be concluded that StemRegenin 1-induced CD34+ cell growth is mediated by direct binding and AhR inhibition (IC50=40 nM). StemRegenin 1 also reduces photoaffinity ligand (PAL) binding. StemRegenin 1 (SR1), an antagonist of the aryl hydrocarbon receptor, strongly encourages the ex vivo growth of human CD34+ cells. Treatment with stemgenin 1 reduces VentX expression levels and speeds up CD34+ cell proliferation[2].
ln Vivo
To calculate the SRC frequency of StemRegenin 1 (SR1) expanded cells a second engraftment experiment was performed. A fraction of the final culture, equivalent to between 30 and 3000 starting CB CD34+ cells expanded for 21 days with control conditions or StemRegenin 1 (SR1), were transplanted into NSG mice (Fig. 3A). Poisson statistics revealed a SRC frequency of 1/703 for uncultured cells, 1/597 per starting cell after cytokine expansion, and 1/40 per starting cell after expansion with StemRegenin 1 (SR1) (Fig. 3B). This represents a total SRC content of 356 in the 2.5 × 105 CB CD34+ cells used to initiate the cultures, 403 SRC in control cultures, and 6283 SRC after culture with StemRegenin 1 (SR1) (Fig. 3C and table S5). The increase in NSG engraftment after culture with StemRegenin 1 (SR1) was reproducible over seven independent experiments (table S6). Calculation of the SRC numbers based on the number of cells injected after culture revealed that control cultures had a 1000-fold reduction in the SRC frequency but not total SRC content relative to fresh cells, likely reflecting that the majority of cells in these cultures are progenitor cells that have lost the ability to engraft NSG mice. Inclusion of StemRegenin 1 (SR1) diminished this effect and resulted in an 8-fold increase in the SRC frequency relative to control cultures. This result, together with the 2-fold increase in total cell number likely account for the 17-fold increase in SRC content.[1]
StemRegenin 1 (SR1) promotes expansion of CB CD34+ cells that contribute to both early and sustained engraftment NOD.Cg-Prkdcscid Il2rgtm1Wjl/SzJ (NSG) mice.
Enzyme Assay
AhR luciferase assay. [1]
Trypsinized HepG2 cells (2 x 106 ) were transiently transfected with 20 μg of pGodLuc6.1 using Fugene6 in Opti-MEM. The transfected cells were washed and resuspended in 20 mL of MEM supplemented with 10 fetal calf serum, and plated into 384 well plates at 50 μL/well. 24 h after transfection, cells were treated with compound for 1 h prior to the addition of TCDD (3 nM). Following 24 h of induction with TCDD, luciferase activity was measured using Bright-Glo™ Luciferase Assay System (Promega).
AhR ligand binding assay. [1]
Experiments were performed as described previously.
Cell Assay
Human CD34+ cells were treated with 1 μm SR1 for 1 week or mock-treated (control (Ctr)). The treated cells were then harvested for analysis of VentX mRNA expression levels. F, GFP- or GFP-VentX-transfected CD34+ cells (2 × 104) were sorted and treated with 1 μm SR1 for 1 week or mock-treated. The total cell numbers were then counted and plotted.[2]
Animal Protocol
Engraftment of CD34+ cells in NSG mice. [1]
A quantity of 250,000 CB-derived CD34+ cells were cultured with control conditions (DMSO, 0.01%) or StemRegenin 1 (SR1) (0.75 μM) for 3 weeks. At this point control cultures had expanded 1080-fold and StemRegenin 1 (SR1) treated cells expanded 2024-fold relative to starting cell numbers. A quantity of 30 to 30,000 uncultured CD34+ CB-derived cells or a fraction of the final culture equivalent to 30 to 10,000 starting cells were transplanted. The cells were injected intravenously via the retro-orbital route into sub-lethally irradiated (300 rads for experiment in Fig. 2A, 200 rads for experiment if Fig. 3A-B) 6- to 10-week-old NSG mice. Engraftment was performed within 24 h after irradiation. Engraftment was monitored by flow cytometric analysis of blood obtained via retro-orbital sinus or bone marrow using anti-human CD45 and anti-mouse CD45 antibodies. The mice were sacrificed between 13-16 weeks posttransplantation; bone marrow (from both femurs and tibiae), spleen and thymus were collected for analysis. For secondary engraftment, 50% of the bone marrow from each recipient mouse was transplanted into one secondary sub-lethally irradiated NSG mouse. Fifteen weeks after transplantation, bone marrow was harvested from the secondary mice and analyzed by flow cytometry. [1]
References

[1]. Aryl hydrocarbon receptor antagonists promote the expansion of human hematopoietic stem cells. Science. 2010 Sep 10;329(5997):1345-8.

[2]. Suppression of homeobox transcription factor VentX promotes expansion of human hematopoietic stem/multipotent progenitor cells. J Biol Chem. 2012 Aug 24;287(35):29979-87.

Additional Infomation
StemRegenin 1 is inhibitor of the aryl hydrocarbon receptor
These protocols are for reference only. InvivoChem does not independently validate these methods.
Physicochemical Properties
Molecular Formula
C24H23N5OS
Molecular Weight
429.54
Exact Mass
429.162
Elemental Analysis
C, 67.11; H, 5.40; N, 16.30; O, 3.72; S, 7.46
CAS #
1227633-49-9
Related CAS #
1227633-49-9
PubChem CID
46199207
Appearance
White to off-white solid powder
Density
1.4±0.1 g/cm3
Boiling Point
622.9±65.0 °C at 760 mmHg
Flash Point
330.5±34.3 °C
Vapour Pressure
0.0±1.9 mmHg at 25°C
Index of Refraction
1.721
LogP
5.1
Hydrogen Bond Donor Count
2
Hydrogen Bond Acceptor Count
6
Rotatable Bond Count
6
Heavy Atom Count
31
Complexity
586
Defined Atom Stereocenter Count
0
InChi Key
BGFHMYJZJZLMHW-UHFFFAOYSA-N
InChi Code
InChI=1S/C24H23N5OS/c1-15(2)29-14-26-21-23(25-12-11-16-7-9-17(30)10-8-16)27-22(28-24(21)29)19-13-31-20-6-4-3-5-18(19)20/h3-10,13-15,30H,11-12H2,1-2H3,(H,25,27,28)
Chemical Name
4-[2-[[2-(1-benzothiophen-3-yl)-9-propan-2-ylpurin-6-yl]amino]ethyl]phenol
Synonyms
SetmEegenin 1; StemRegenin 1; 1227633-49-9; SetmEegenin 1; StemRegenin 1 (SR1); StemRegenin1; 4-(2-(2-(benzo[b]thiophen-3-yl)-9-isopropyl-9H-purin-6-ylamino)ethyl)phenol; Stemregenin 1 (GMP); MFCD16987861; SR1
HS Tariff Code
2934.99.9001
Storage

Powder      -20°C    3 years

                     4°C     2 years

In solvent   -80°C    6 months

                  -20°C    1 month

Shipping Condition
Room temperature (This product is stable at ambient temperature for a few days during ordinary shipping and time spent in Customs)
Solubility Data
Solubility (In Vitro)
DMSO: 86 mg/mL (200.2 mM)
Water:<1 mg/mL
Ethanol:<1 mg/mL
Solubility (In Vivo)
Solubility in Formulation 1: ≥ 2.5 mg/mL (5.82 mM) (saturation unknown) in 10% DMSO + 40% PEG300 + 5% Tween80 + 45% Saline (add these co-solvents sequentially from left to right, and one by one), clear solution.
For example, if 1 mL of working solution is to be prepared, you can add 100 μL of 25.0 mg/mL clear DMSO stock solution to 400 μL PEG300 and mix evenly; then add 50 μL Tween-80 to the above solution and mix evenly; then add 450 μL normal saline to adjust the volume to 1 mL.
Preparation of saline: Dissolve 0.9 g of sodium chloride in 100 mL ddH₂ O to obtain a clear solution.

Solubility in Formulation 2: 2.5 mg/mL (5.82 mM) in 10% DMSO + 90% (20% SBE-β-CD in Saline) (add these co-solvents sequentially from left to right, and one by one), suspension solution; with ultrasonication.
For example, if 1 mL of working solution is to be prepared, you can add 100 μL of 25.0 mg/mL clear DMSO stock solution to 900 μL of 20% SBE-β-CD physiological saline solution and mix evenly.
Preparation of 20% SBE-β-CD in Saline (4°C,1 week): Dissolve 2 g SBE-β-CD in 10 mL saline to obtain a clear solution.

View More

Solubility in Formulation 3: ≥ 2.5 mg/mL (5.82 mM) (saturation unknown) in 10% DMSO + 90% Corn Oil (add these co-solvents sequentially from left to right, and one by one), clear solution.
For example, if 1 mL of working solution is to be prepared, you can add 100 μL of 25.0 mg/mL clear DMSO stock solution to 900 μL of corn oil and mix evenly.


 (Please use freshly prepared in vivo formulations for optimal results.)
Preparing Stock Solutions 1 mg 5 mg 10 mg
1 mM 2.3281 mL 11.6404 mL 23.2807 mL
5 mM 0.4656 mL 2.3281 mL 4.6561 mL
10 mM 0.2328 mL 1.1640 mL 2.3281 mL

*Note: Please select an appropriate solvent for the preparation of stock solution based on your experiment needs. For most products, DMSO can be used for preparing stock solutions (e.g. 5 mM, 10 mM, or 20 mM concentration); some products with high aqueous solubility may be dissolved in water directly. Solubility information is available at the above Solubility Data section. Once the stock solution is prepared, aliquot it to routine usage volumes and store at -20°C or -80°C. Avoid repeated freeze and thaw cycles.

Calculator

Molarity Calculator allows you to calculate the mass, volume, and/or concentration required for a solution, as detailed below:

  • Calculate the Mass of a compound required to prepare a solution of known volume and concentration
  • Calculate the Volume of solution required to dissolve a compound of known mass to a desired concentration
  • Calculate the Concentration of a solution resulting from a known mass of compound in a specific volume
An example of molarity calculation using the molarity calculator is shown below:
What is the mass of compound required to make a 10 mM stock solution in 5 ml of DMSO given that the molecular weight of the compound is 350.26 g/mol?
  • Enter 350.26 in the Molecular Weight (MW) box
  • Enter 10 in the Concentration box and choose the correct unit (mM)
  • Enter 5 in the Volume box and choose the correct unit (mL)
  • Click the “Calculate” button
  • The answer of 17.513 mg appears in the Mass box. In a similar way, you may calculate the volume and concentration.

Dilution Calculator allows you to calculate how to dilute a stock solution of known concentrations. For example, you may Enter C1, C2 & V2 to calculate V1, as detailed below:

What volume of a given 10 mM stock solution is required to make 25 ml of a 25 μM solution?
Using the equation C1V1 = C2V2, where C1=10 mM, C2=25 μM, V2=25 ml and V1 is the unknown:
  • Enter 10 into the Concentration (Start) box and choose the correct unit (mM)
  • Enter 25 into the Concentration (End) box and select the correct unit (mM)
  • Enter 25 into the Volume (End) box and choose the correct unit (mL)
  • Click the “Calculate” button
  • The answer of 62.5 μL (0.1 ml) appears in the Volume (Start) box
g/mol

Molecular Weight Calculator allows you to calculate the molar mass and elemental composition of a compound, as detailed below:

Note: Chemical formula is case sensitive: C12H18N3O4  c12h18n3o4
Instructions to calculate molar mass (molecular weight) of a chemical compound:
  • To calculate molar mass of a chemical compound, please enter the chemical/molecular formula and click the “Calculate’ button.
Definitions of molecular mass, molecular weight, molar mass and molar weight:
  • Molecular mass (or molecular weight) is the mass of one molecule of a substance and is expressed in the unified atomic mass units (u). (1 u is equal to 1/12 the mass of one atom of carbon-12)
  • Molar mass (molar weight) is the mass of one mole of a substance and is expressed in g/mol.
/

Reconstitution Calculator allows you to calculate the volume of solvent required to reconstitute your vial.

  • Enter the mass of the reagent and the desired reconstitution concentration as well as the correct units
  • Click the “Calculate” button
  • The answer appears in the Volume (to add to vial) box
In vivo Formulation Calculator (Clear solution)
Step 1: Enter information below (Recommended: An additional animal to make allowance for loss during the experiment)
Step 2: Enter in vivo formulation (This is only a calculator, not the exact formulation for a specific product. Please contact us first if there is no in vivo formulation in the solubility section.)
+
+
+

Calculation results

Working concentration mg/mL;

Method for preparing DMSO stock solution mg drug pre-dissolved in μL DMSO (stock solution concentration mg/mL). Please contact us first if the concentration exceeds the DMSO solubility of the batch of drug.

Method for preparing in vivo formulation:Take μL DMSO stock solution, next add μL PEG300, mix and clarify, next addμL Tween 80, mix and clarify, next add μL ddH2O,mix and clarify.

(1) Please be sure that the solution is clear before the addition of next solvent. Dissolution methods like vortex, ultrasound or warming and heat may be used to aid dissolving.
             (2) Be sure to add the solvent(s) in order.

Clinical Trial Information
NCT Number Recruitment interventions Conditions Sponsor/Collaborators Start Date Phases
NCT02765997 Withdrawn Drug: Larotrectinib Sulfate
Procedure: Bone Scan
Biological: Unmanipulated UCB
Biological: SR-1 UCB
Masonic Cancer Center, University
of Minnesota
April 2017 Phase 2
Biological Data

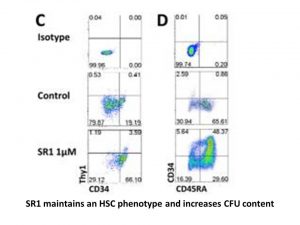

  • StemRegenin 1 (SR1)

  • StemRegenin 1 (SR1)

  • StemRegenin 1 (SR1)

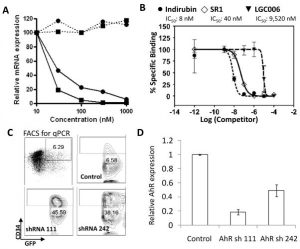

    SR1-induced CD34+ cell expansion acts by binding and antagonizing AhR. Science. 2010 Sep 10;329(5997):1345-8.
