Tenofovir Alafenamide (GS-7340)

Alias: GS7340; GS-7340; GS 7340;Genvoya
Cat No.:V1818 Purity: ≥98%
Tenofovir Alafenamide (formerly also known as TAF and GS-7340) is a novel prodrug of tenofovir, which is a potent reverse transcriptase inhibitor [nucleotide reverse transcriptase inhibitor (NRTIs)], it is used for the treatment ofHIV and Hepatitis B.
Tenofovir Alafenamide (GS-7340)
Tenofovir Alafenamide (GS-7340) Chemical Structure CAS No.: 379270-37-8
Product category: Reverse Transcriptase
This product is for research use only, not for human use. We do not sell to patients.
Size Price Stock Qty
10mg
25mg
50mg
100mg
250mg
500mg
1g
5g
Other Sizes

Other Forms of Tenofovir Alafenamide (GS-7340):

  • Tenofovir alafenamide fumarate (GS-7340)
  • Tenofovir alafenamide hemifumarate (GS-7340)
Official Supplier of:
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Top Publications Citing lnvivochem Products
Purity & Quality Control Documentation

Purity: ≥98%

Product Description

Tenofovir Alafenamide (formerly also known as TAF and GS-7340) is a novel prodrug of tenofovir, which is a potent reverse transcriptase inhibitor [nucleotide reverse transcriptase inhibitor (NRTIs)], it is used for the treatment of HIV and Hepatitis B. By blocking reverse transcriptase, Tenofovir Alafenamide prevent HIV from multiplying and can reduce the amount of HIV in the body. Tenofovir alafenamide is a prodrug that it is inactive in the parent form, and has to be converted to tenofovir diphosphate (TFV-DP) in vivo.

Biological Activity I Assay Protocols (From Reference)
Targets
HIV-1/2 nucleotide reverse transcriptase
ln Vitro
The antiviral activity of tenofovir alafenamide (GS-7340) ranged from 5 to 7 nM in all cell types, although the CC50 for MT-4 and MT-2 cells varied from 4.7 to 42 μM. A panel of HIV-1 and HIV-2 isolates, comprising HIV-1 M group subtypes A to G and group N and O isolates, were used to assess the antiviral activity of TAF. The average TAF EC50 was 3.5 nM, with a range of 0.1 to 12 nM. In contrast, the average EC50 of AZT, the internal control, was 11.8 nM for 29 main HIV-1 strains evaluated in PBMC. TAF's average EC50 for HIV-2 isolates is 1.8 nM, while AZT's average EC50 is 6.4 nM [2].
ln Vivo
When compared to Tenofovir disoproxil fumarate (TDF), Tenofovir alafenamide (GS-7340) hemifumarate, the amidate prodrug of Tenofovir, exhibits better oral bioavailability and plasma stability [1].
Enzyme Assay
Intestinal and Hepatic S9 Stability [1]
GS-7340 was incubated at 10 μM with either dog or human intestinal and hepatic S9 fractions for 120 min at 37 °C in a 96-well plate format. At specified time points following compound addition, samples were quenched with 9 volumes of an aqueous solution containing 25% acetonitrile and 50% methanol. Plates were centrifuged at 3000g for 30 min, and 10 μL of the resulting solution was analyzed by LC–MS/MS. Data (analyte to internal standard peak area ratio) were plotted on a semi log scale and fitted using an exponential fit. Assuming first order kinetics, the half-life and rate of metabolism were determined. Predicted hepatic extraction was calculated from the half-life by reported methods using the well-stirred model for hepatic clearance.
Cell Assay
Caco-2 Permeability [1]
Bidirectional permeability studies were done using confluent monolayers of the human colon carcinoma cell line caco-2 seeded in 12-well plates as previously reported. The effects of either concentration (10, 100, or 1,000 μM) or efflux transporter inhibition on the permeation of GS-7340 were studied. Effect of the inhibition of efflux transporters including P-glycoprotein (Pgp) was assessed following a 30 min preincubation of cell monolayers with 10 μM cyclosporin A (CsA) in transport buffer to allow for saturation of transporter binding sites. Following preincubation, fresh assay buffer containing CsA and GS-7340 was added and the assay was started. Each determination was performed in duplicate, and the permeability of control compounds (atenolol, propranolol, and digoxin) was determined to meet acceptance criteria for each batch of assay plates.
Animal Protocol
Animals [1]
Male beagle dogs between the ages of 6 and 18 months were used for the in life portion of this study. The animals were housed in accordance with the standards of the American Association for Accreditation of Laboratory Animal Care and were receiving a standard commercial diet. Animals were handled in strict accordance with the Guide for the Care and Use of Laboratory Animals, (22) and the protocol was reviewed by the Institutional Animal Care and Use Committee at SRI International. Animals were between 7 and 11 kg at dosing.
Drug Administration[1]
For intravenous administration, GS-7340 was formulated in 5% dextrose in water. For oral administration, GS-7340 was formulated in 50 mM citric acid (pH 5.0) at doses of 2 to 10 mg/kg. For the 20 mg/kg dose, GS-7340 was formulated in 50 mM citric acid (pH 5.5) with 0.1% Polysorbate 20. To test the effect of efflux transport inhibition, dogs were administered 2 mg/kg GS-7340 1 h following pretreatment with a 75 mg capsule of CsA.
Plasma and PBMC Sample Collection[1]
Blood (approximately 0.5 mL) was collected at specified time points over 24 h from the jugular vein (intraportal vein infusion and oral pharmacokinetic studies), the jugular and portal veins (oral administration to portal vein cannulated dogs), or the cephalic vein (jugular vein infusion). Plasma was isolated in Vacutainer tubes containing EDTA as an anticoagulant by centrifugation. At select time points (1, 4, 8, and 24 h postdose) in the 5 mg/kg oral pharmacokinetic study, 8 to 10 mL of blood was collected into Vacutainer cell preparation tubes (Becton Dickinson) for isolation of peripheral blood mononuclear cells (PBMC) and processed following manufacturer instructions. Small aliquots (10 μL) of isolated PBMC pellets diluted in 0.9% NaCl were maintained at room temperature and used to determine cell count. 500 μL of 70% methanol was added to the remaining PBMC pellets and, together with plasma samples, stored at −80 °C until shipment for further processing and analysis.
10 mg/kg, p.o.
Beagle dogs
References
[1]. Babusis D, et al. Mechanism for effective lymphoid cell and tissue loading following oral administration of nucleotide prodrug GS-7340. Mol Pharm. 2013 Feb 4;10(2):459-66.
[2]. Ruane PJ, et al. Antiviral activity, safety, and pharmacokinetics/pharmacodynamics of tenofovir alafenamide as 10-day monotherapy in HIV-1-positive adults. J Acquir Immune Defic Syndr. 2013 Aug 1;63(4):449-55.
These protocols are for reference only. InvivoChem does not independently validate these methods.
Physicochemical Properties
Molecular Formula
C21H29N6O5P
Molecular Weight
476.47
Exact Mass
476.1937
Elemental Analysis
C, 52.94; H, 6.13; N, 17.64; O, 16.79; P, 6.50
CAS #
379270-37-8
Related CAS #
Tenofovir alafenamide fumarate;379270-38-9;Tenofovir alafenamide hemifumarate;1392275-56-7
Appearance
White to off-white solid
LogP
2.2
tPSA
153.290
SMILES
[P@](C([H])([H])OC([H])(C([H])([H])[H])C([H])([H])N1C([H])=NC2=C(N([H])[H])N=C([H])N=C12)(N([H])C([H])(C(=O)OC([H])(C([H])([H])[H])C([H])([H])[H])C([H])([H])[H])(=O)OC1C([H])=C([H])C([H])=C([H])C=1[H]
InChi Key
LDEKQSIMHVQZJK-AZFZMOAFSA-N
InChi Code
InChI=1S/C21H29N6O5P/c1-14(2)31-21(28)16(4)26-33(29,32-17-8-6-5-7-9-17)13-30-15(3)10-27-12-25-18-19(22)23-11-24-20(18)27/h5-9,11-12,14-16H,10,13H2,1-4H3,(H,26,29)(H2,22,23,24)/t15-,16+,33?/m1/s1
Chemical Name
(S)-isopropyl 2-(((S)-((((R)-1-(6-amino-9H-purin-9-yl)propan-2-yl)oxy)methyl)(phenoxy)phosphoryl)amino)propanoate
Synonyms
GS7340; GS-7340; GS 7340;Genvoya
HS Tariff Code
2934.99.9001
Storage

Powder      -20°C    3 years

                     4°C     2 years

In solvent   -80°C    6 months

                  -20°C    1 month

Shipping Condition
Room temperature (This product is stable at ambient temperature for a few days during ordinary shipping and time spent in Customs)
Solubility Data
Solubility (In Vitro)
DMSO: 95 mg/mL (199.4 mM)
Water:<1 mg/mL
Ethanol:95 mg/mL (199.4 mM)
Solubility (In Vivo)
Solubility in Formulation 1: ≥ 2.08 mg/mL (4.37 mM) (saturation unknown) in 10% DMSO + 40% PEG300 + 5% Tween80 + 45% Saline (add these co-solvents sequentially from left to right, and one by one), clear solution.
For example, if 1 mL of working solution is to be prepared, you can add 100 μL of 20.8 mg/mL clear DMSO stock solution to 400 μL PEG300 and mix evenly; then add 50 μL Tween-80 to the above solution and mix evenly; then add 450 μL normal saline to adjust the volume to 1 mL.
Preparation of saline: Dissolve 0.9 g of sodium chloride in 100 mL ddH₂ O to obtain a clear solution.

Solubility in Formulation 2: ≥ 2.08 mg/mL (4.37 mM) (saturation unknown) in 10% DMSO + 90% (20% SBE-β-CD in Saline) (add these co-solvents sequentially from left to right, and one by one), clear solution.
For example, if 1 mL of working solution is to be prepared, you can add 100 μL of 20.8 mg/mL clear DMSO stock solution to 900 μL of 20% SBE-β-CD physiological saline solution and mix evenly.
Preparation of 20% SBE-β-CD in Saline (4°C,1 week): Dissolve 2 g SBE-β-CD in 10 mL saline to obtain a clear solution.

View More

Solubility in Formulation 3: ≥ 2.08 mg/mL (4.37 mM) (saturation unknown) in 10% DMSO + 90% Corn Oil (add these co-solvents sequentially from left to right, and one by one), clear solution.
For example, if 1 mL of working solution is to be prepared, you can add 100 μL of 20.8 mg/mL clear DMSO stock solution to 900 μL of corn oil and mix evenly.


Solubility in Formulation 4: 40 mg/mL (83.95 mM) in PBS (add these co-solvents sequentially from left to right, and one by one), clear solution; with ultrasonication.

 (Please use freshly prepared in vivo formulations for optimal results.)
Preparing Stock Solutions 1 mg 5 mg 10 mg
1 mM 2.0988 mL 10.4938 mL 20.9877 mL
5 mM 0.4198 mL 2.0988 mL 4.1975 mL
10 mM 0.2099 mL 1.0494 mL 2.0988 mL

*Note: Please select an appropriate solvent for the preparation of stock solution based on your experiment needs. For most products, DMSO can be used for preparing stock solutions (e.g. 5 mM, 10 mM, or 20 mM concentration); some products with high aqueous solubility may be dissolved in water directly. Solubility information is available at the above Solubility Data section. Once the stock solution is prepared, aliquot it to routine usage volumes and store at -20°C or -80°C. Avoid repeated freeze and thaw cycles.

Calculator

Molarity Calculator allows you to calculate the mass, volume, and/or concentration required for a solution, as detailed below:

  • Calculate the Mass of a compound required to prepare a solution of known volume and concentration
  • Calculate the Volume of solution required to dissolve a compound of known mass to a desired concentration
  • Calculate the Concentration of a solution resulting from a known mass of compound in a specific volume
An example of molarity calculation using the molarity calculator is shown below:
What is the mass of compound required to make a 10 mM stock solution in 5 ml of DMSO given that the molecular weight of the compound is 350.26 g/mol?
  • Enter 350.26 in the Molecular Weight (MW) box
  • Enter 10 in the Concentration box and choose the correct unit (mM)
  • Enter 5 in the Volume box and choose the correct unit (mL)
  • Click the “Calculate” button
  • The answer of 17.513 mg appears in the Mass box. In a similar way, you may calculate the volume and concentration.

Dilution Calculator allows you to calculate how to dilute a stock solution of known concentrations. For example, you may Enter C1, C2 & V2 to calculate V1, as detailed below:

What volume of a given 10 mM stock solution is required to make 25 ml of a 25 μM solution?
Using the equation C1V1 = C2V2, where C1=10 mM, C2=25 μM, V2=25 ml and V1 is the unknown:
  • Enter 10 into the Concentration (Start) box and choose the correct unit (mM)
  • Enter 25 into the Concentration (End) box and select the correct unit (mM)
  • Enter 25 into the Volume (End) box and choose the correct unit (mL)
  • Click the “Calculate” button
  • The answer of 62.5 μL (0.1 ml) appears in the Volume (Start) box
g/mol

Molecular Weight Calculator allows you to calculate the molar mass and elemental composition of a compound, as detailed below:

Note: Chemical formula is case sensitive: C12H18N3O4  c12h18n3o4
Instructions to calculate molar mass (molecular weight) of a chemical compound:
  • To calculate molar mass of a chemical compound, please enter the chemical/molecular formula and click the “Calculate’ button.
Definitions of molecular mass, molecular weight, molar mass and molar weight:
  • Molecular mass (or molecular weight) is the mass of one molecule of a substance and is expressed in the unified atomic mass units (u). (1 u is equal to 1/12 the mass of one atom of carbon-12)
  • Molar mass (molar weight) is the mass of one mole of a substance and is expressed in g/mol.
/

Reconstitution Calculator allows you to calculate the volume of solvent required to reconstitute your vial.

  • Enter the mass of the reagent and the desired reconstitution concentration as well as the correct units
  • Click the “Calculate” button
  • The answer appears in the Volume (to add to vial) box
In vivo Formulation Calculator (Clear solution)
Step 1: Enter information below (Recommended: An additional animal to make allowance for loss during the experiment)
Step 2: Enter in vivo formulation (This is only a calculator, not the exact formulation for a specific product. Please contact us first if there is no in vivo formulation in the solubility section.)
+
+
+

Calculation results

Working concentration mg/mL;

Method for preparing DMSO stock solution mg drug pre-dissolved in μL DMSO (stock solution concentration mg/mL). Please contact us first if the concentration exceeds the DMSO solubility of the batch of drug.

Method for preparing in vivo formulation:Take μL DMSO stock solution, next add μL PEG300, mix and clarify, next addμL Tween 80, mix and clarify, next add μL ddH2O,mix and clarify.

(1) Please be sure that the solution is clear before the addition of next solvent. Dissolution methods like vortex, ultrasound or warming and heat may be used to aid dissolving.
             (2) Be sure to add the solvent(s) in order.

Biological Data
  • Tenofovir Alafenamide (GS-7340)

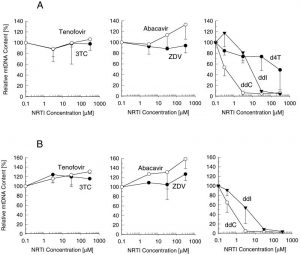

    Effects of tenofovir and other NRTIs on mtDNA content in skeletal muscle cells. Antimicrob Agents Chemother. 2002 Mar;46(3):716-23.
  • Tenofovir Alafenamide (GS-7340)

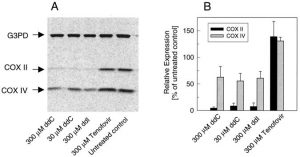

    Effects of ddC, ddI, and tenofovir on the expression of COX II and COX IV in HepG2 cells. Antimicrob Agents Chemother. 2002 Mar;46(3):716-23.
